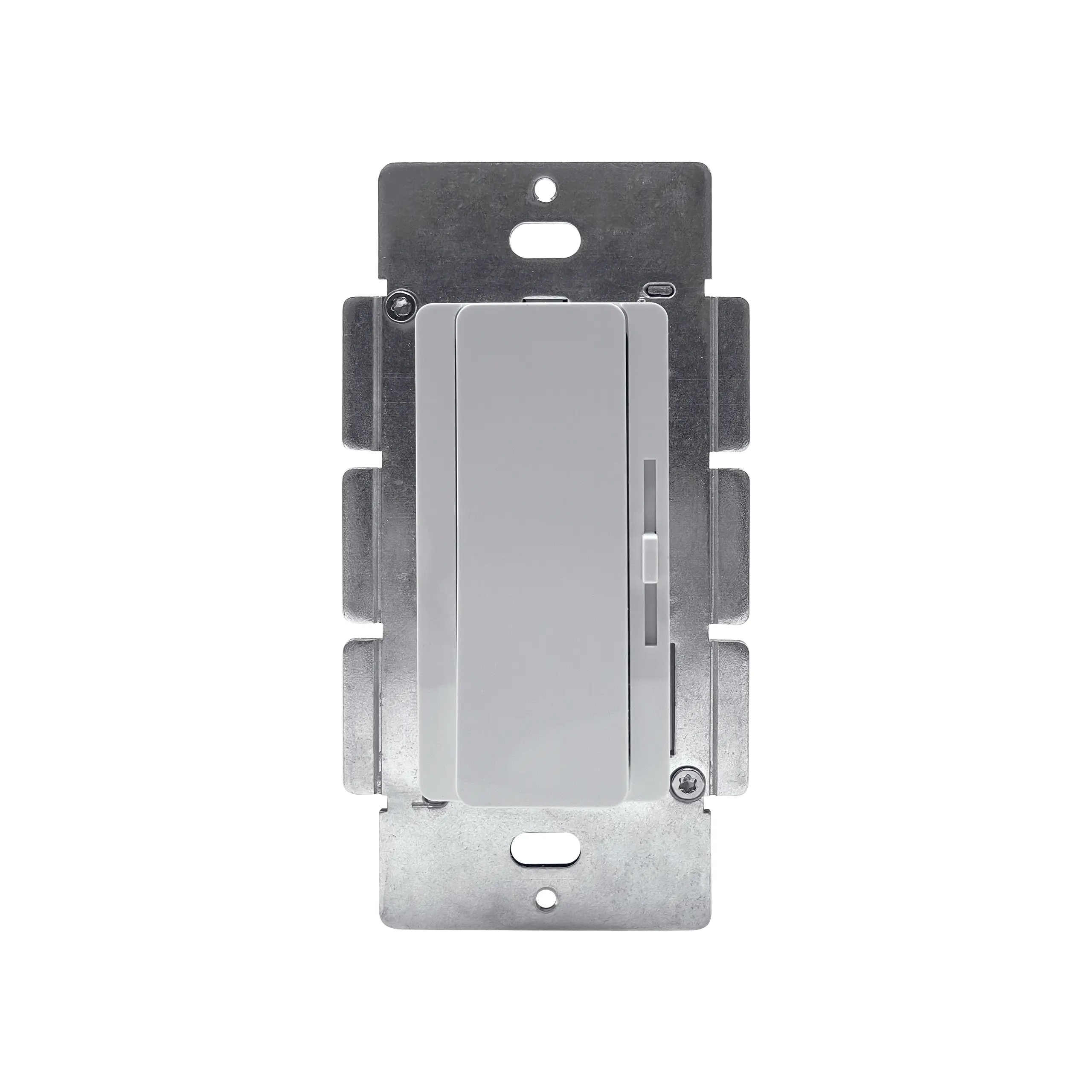

EnoDim-60-12-D-W
Driver & Dimmer Switch in One • 60W • 12VDC
DESCRIPTION
The EnoDim Series combines a driver and dimmer into one sleek, elegant designer-style wall switch, simplifying installation and saving space. It features a large paddle switch with a small dimming slider, fits standard wall plates, and is perfect for remodeling projects where hiding an LED driver is difficult or impossible. With soft dimming down to 0.1%, wide compatibility, and no minimum load required, it’s the smarter, all-in-one choice for your next lighting project.
FEATURES
- Integrated Driver & Dimmer Wall Switch
- Designer-style wall switch
- Soft dimming down to 0.1%
- Single-Pole & 3-Way
- Compatible with COB LED tape
- No minimum load required
- Fits Standard Wall Plates
- Retail-Ready Packaging
- Prevents Drop with Adjustable Output
- Compliant with Title 24 Part 6 Flicker Requirements
| Max Power | 60W |
| Input Voltage | 120VAC |
| Output Voltage | 12VDC (12V-13.5V adjust by knob) |
| Dimmable | 0.1% – 100% |
| Efficiency @ Full Load | 91% |
| Warranty | 6 Year |
| Dimensions (W x H x L) | 4.134″ x 2.126″ x 1.996″ |
Ordering Information
| Ordering Code | Input Voltage | Output Voltage | Max Load | Class 2 | Dimmable | Dimensions |
|---|---|---|---|---|---|---|
EnoDim-96-24-D-W |
120VAC |
24VDC |
96W |
Yes |
0.1% – 100% |
4.134″ x 2.126″ x 1.996″ |
EnoDim-160-24-D-W |
120VAC |
24VDC |
160W |
0.1% – 100% |
4.134″ x 2.126″ x 1.996″ | |
EnoDim-60-12-D-W |
120VAC |
12VDC |
60W |
Yes |
0.1% – 100% |
4.134″ x 2.126″ x 1.996″″ |
EnoDim-120-12-D-W |
120VAC |
12VDC |
120W |
0.1% – 100% |
4.134″ x 2.126″ x 1.996″ |
