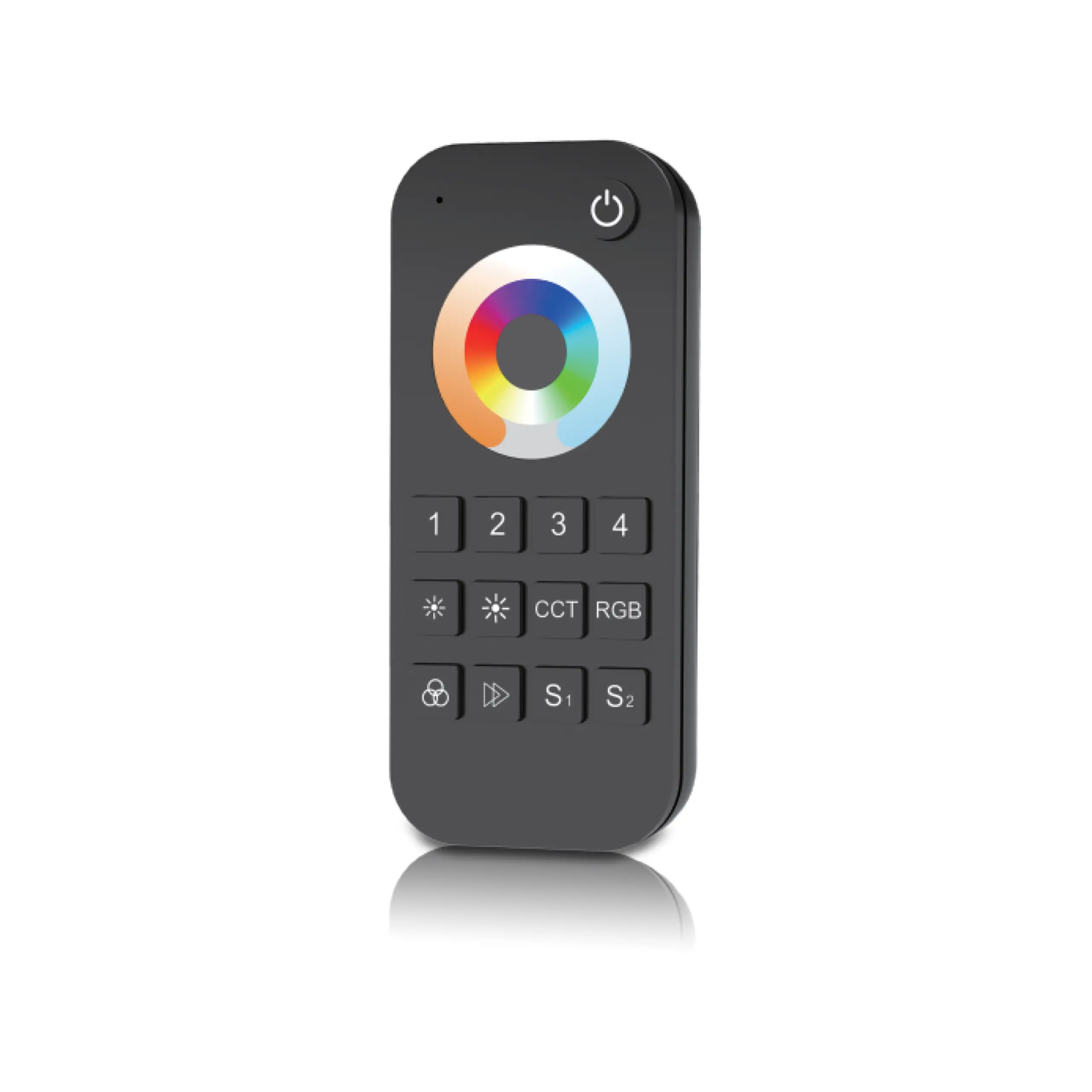

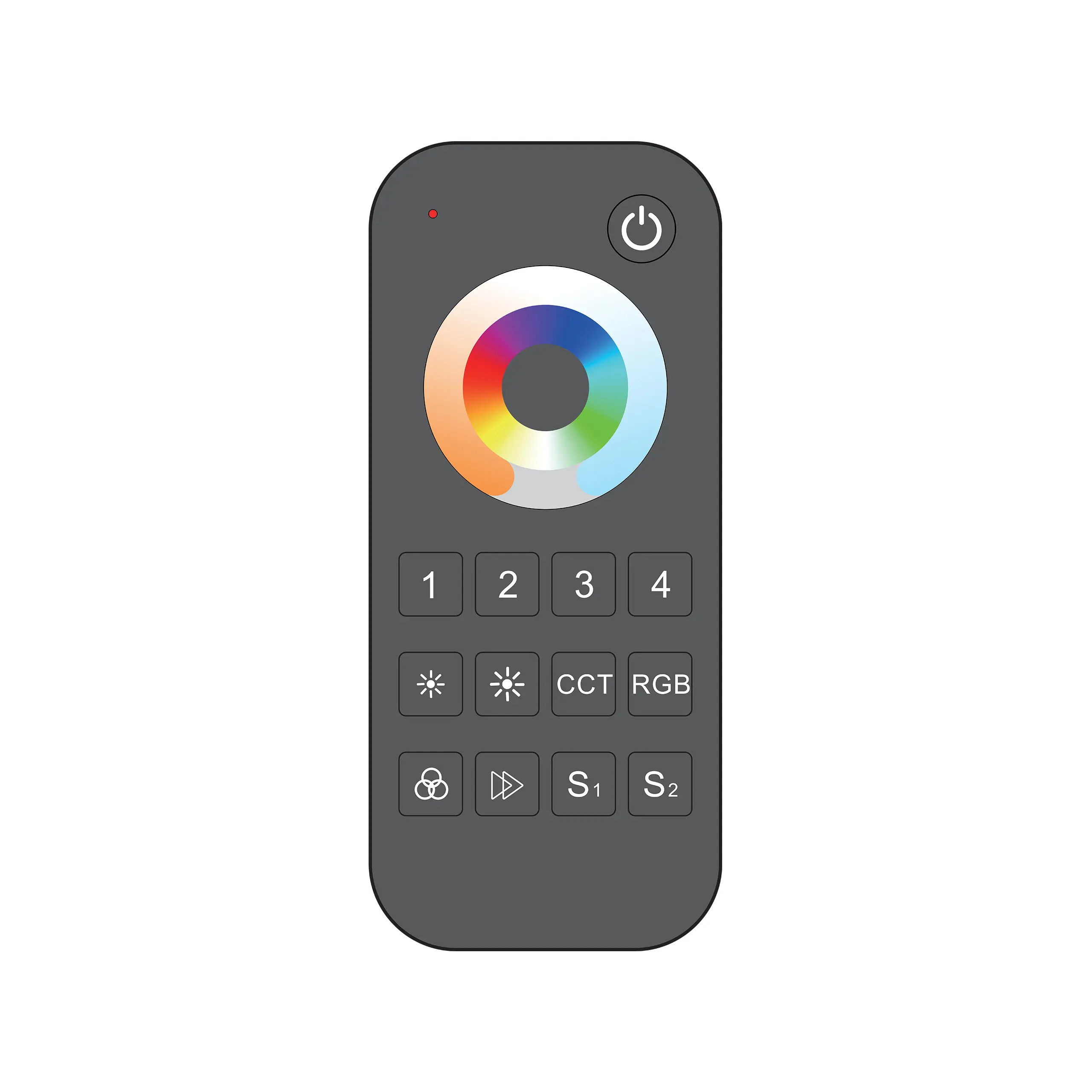

ES-RT-Z4-RGBCCT
RGB+CCT Touch Wheel RF Remote Controller
DESCRIPTION
The ES-RT-Z4-RGBCCT is a universal 4-zone remote that combines RGB color control with full tunable white (CCT) capability. It switches between RGB and CCT modes, controls WW/CW mixing, adjusts saturation, and supports dynamic effects. One remote can operate multiple EnoSync RGB, RGBW, CCT, or RGB+CCT controllers, making it ideal for mixed lighting environments.
FEATURES
- 4 independent zones

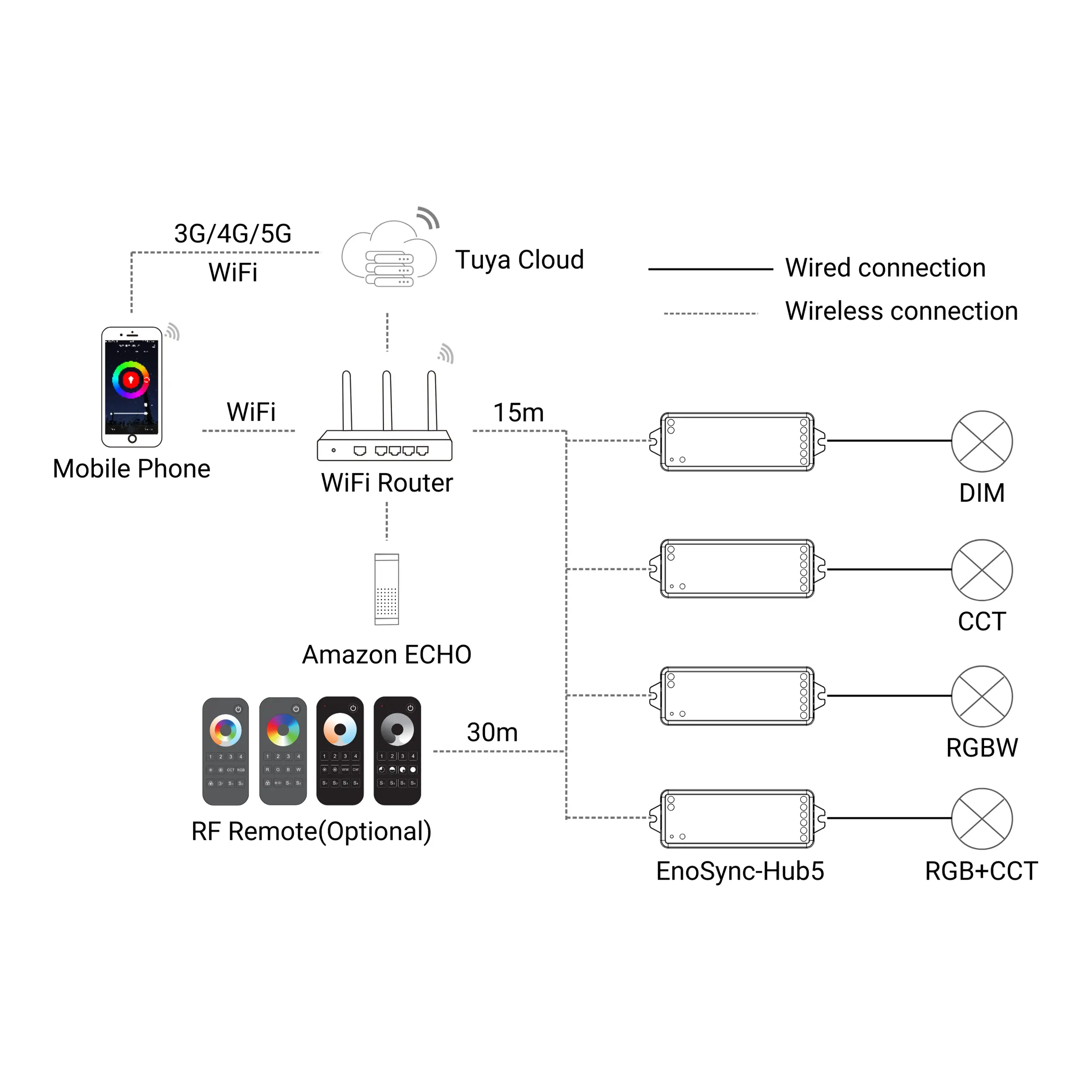

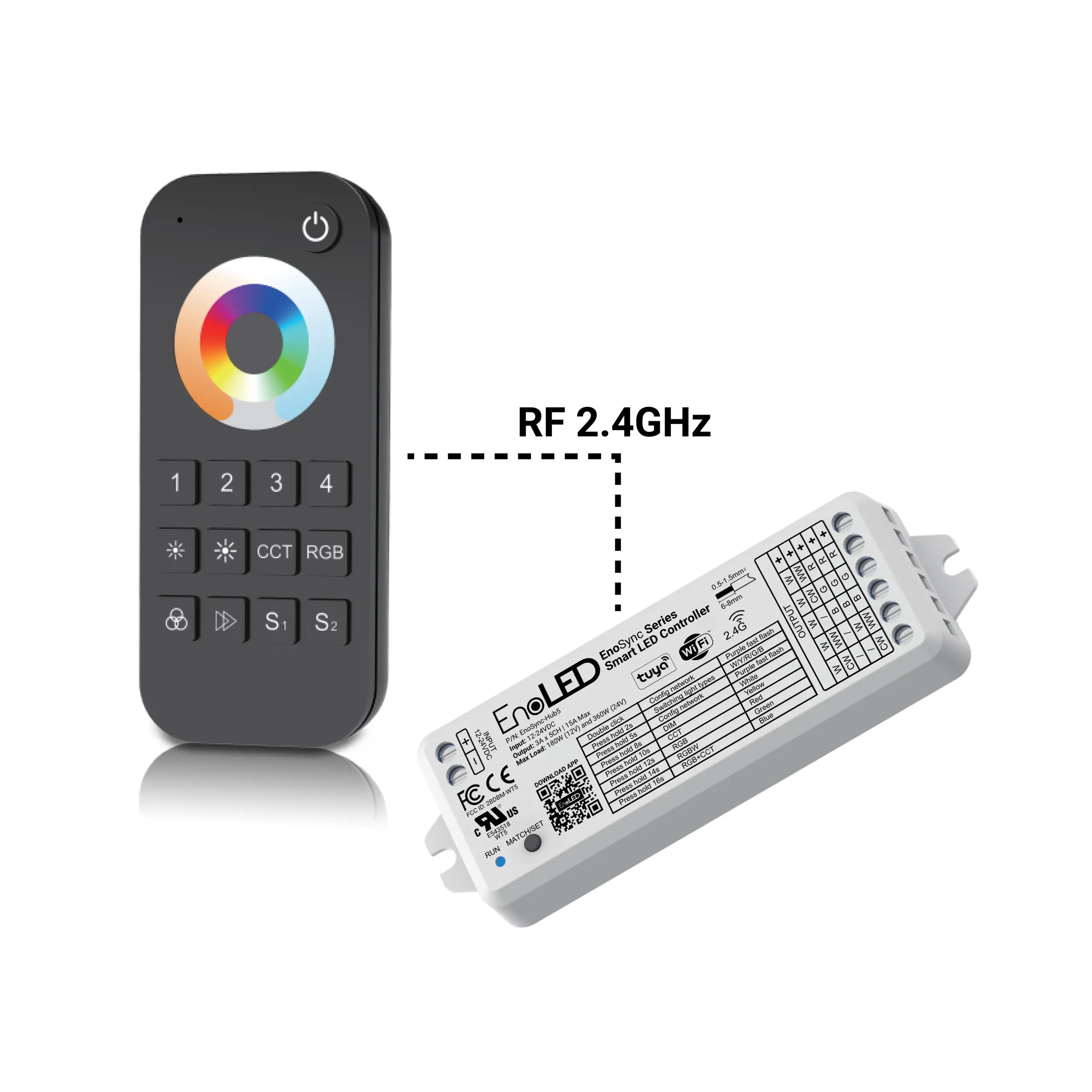

- Controls multiple EnoSync RGB, RGBW, CCT, or RGB+CCT controllers
- Touch wheel for RGB or CCT control
- RGB saturation, CCT mixing, and brightness adjustment
- Dynamic RGB modes with adjustable speed
- Scene recall and save (S1–S2)
- AAAx2 battery powered
- 30m RF range
- LED indicator feedback
| Control type | RGB+CCT |
| Output Signal | RF (2.4GHz) |
| Working Voltage | 3VDC (AAAX2) |
| Remote Distance | 30m (Barrier-free space) |
| Dimensions (W x H x L) | 2.08″ x 0.68″ x 4.8″ |
Ordering Information
| Ordering Code | Control Type | Output Signal | Working Voltage | Remote Distance | Dimensions (W xH x L) |
|---|---|---|---|---|---|
ES-RT-Z4-Dim |
Dim |
RF (2.4GHz) |
3VDC (AAAX2) |
30m (Barrier-free space) |
2.08″ x 0.68″ x 4.8″ |
ES-RT-Z4-TW |
CCT |
RF (2.4GHz) |
3VDC (AAAX2) |
30m (Barrier-free space) |
2.08″ x 0.68″ x 4.8″ |
ES-RT-Z4-RGBW |
RGB/RGBW |
RF (2.4GHz) |
3VDC (AAAX2) |
30m (Barrier-free space) |
2.08″ x 0.68″ x 4.8″ |
ES-RT-Z4-RGBCCT |
RGB+CCT |
RF (2.4GHz) |
3VDC (AAAX2) |
30m (Barrier-free space) |
2.08″ x 0.68″ x 4.8″ |
