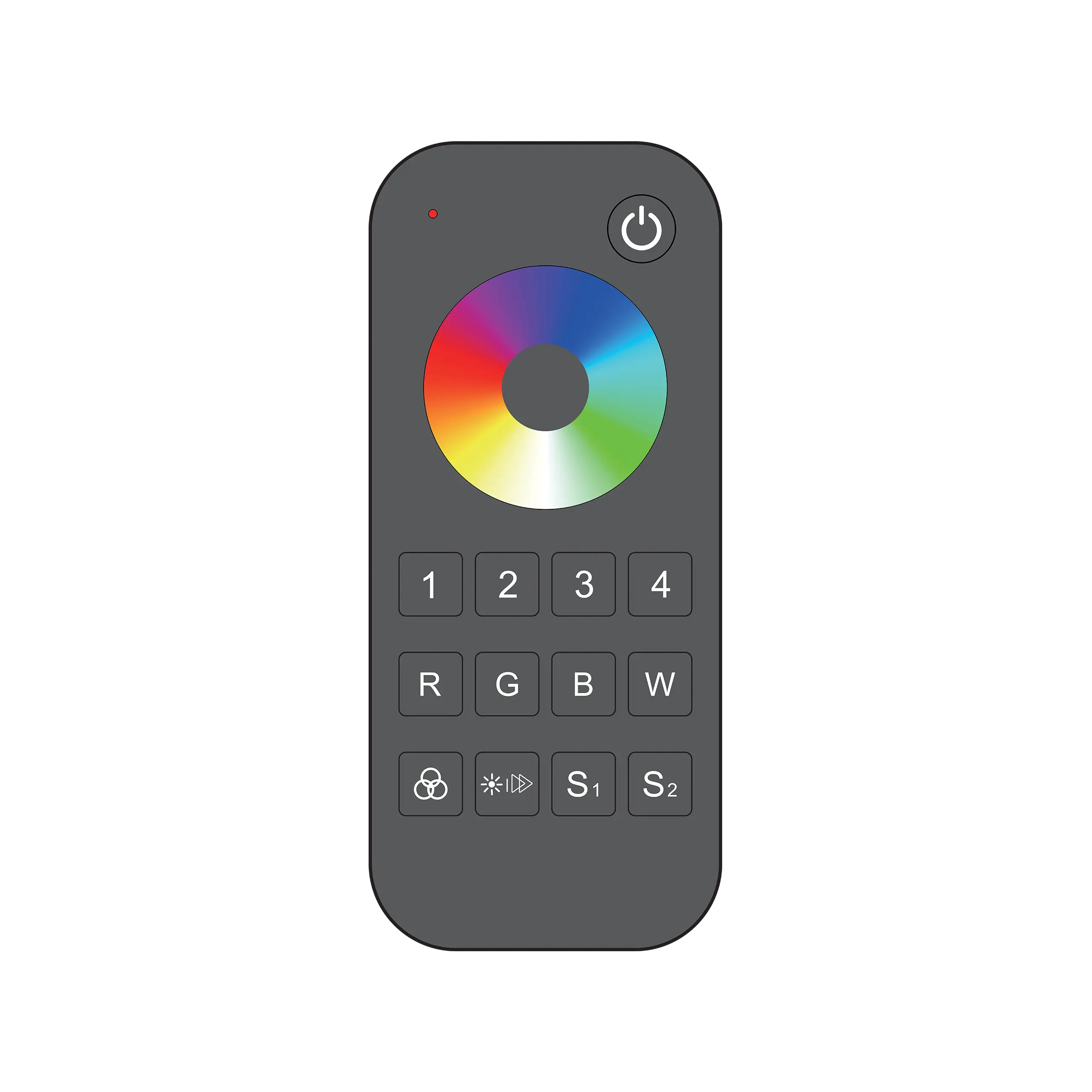

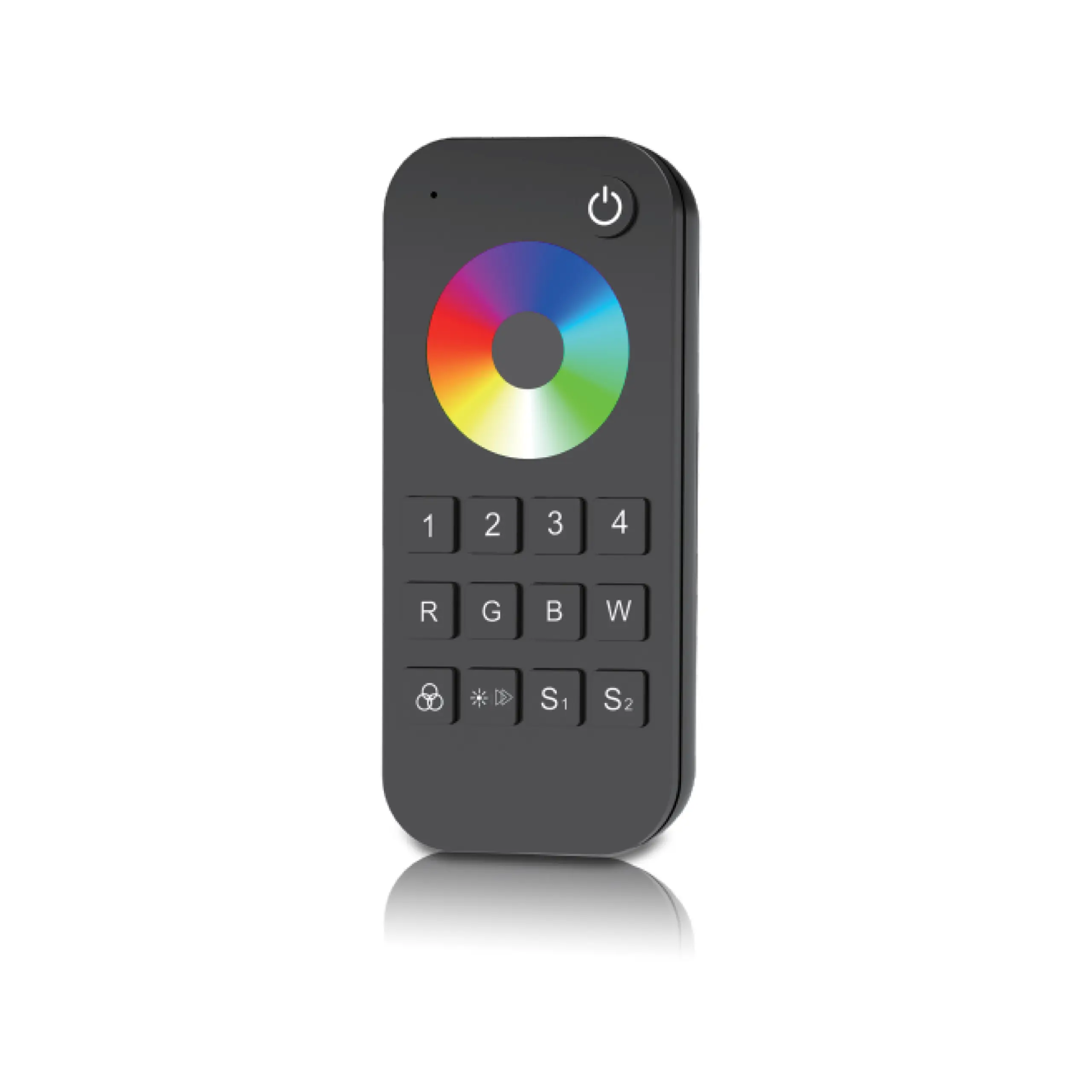

ES-RT-Z4-RGBW
RGB/RGBW Touch Wheel RF Remote Controller
DESCRIPTION

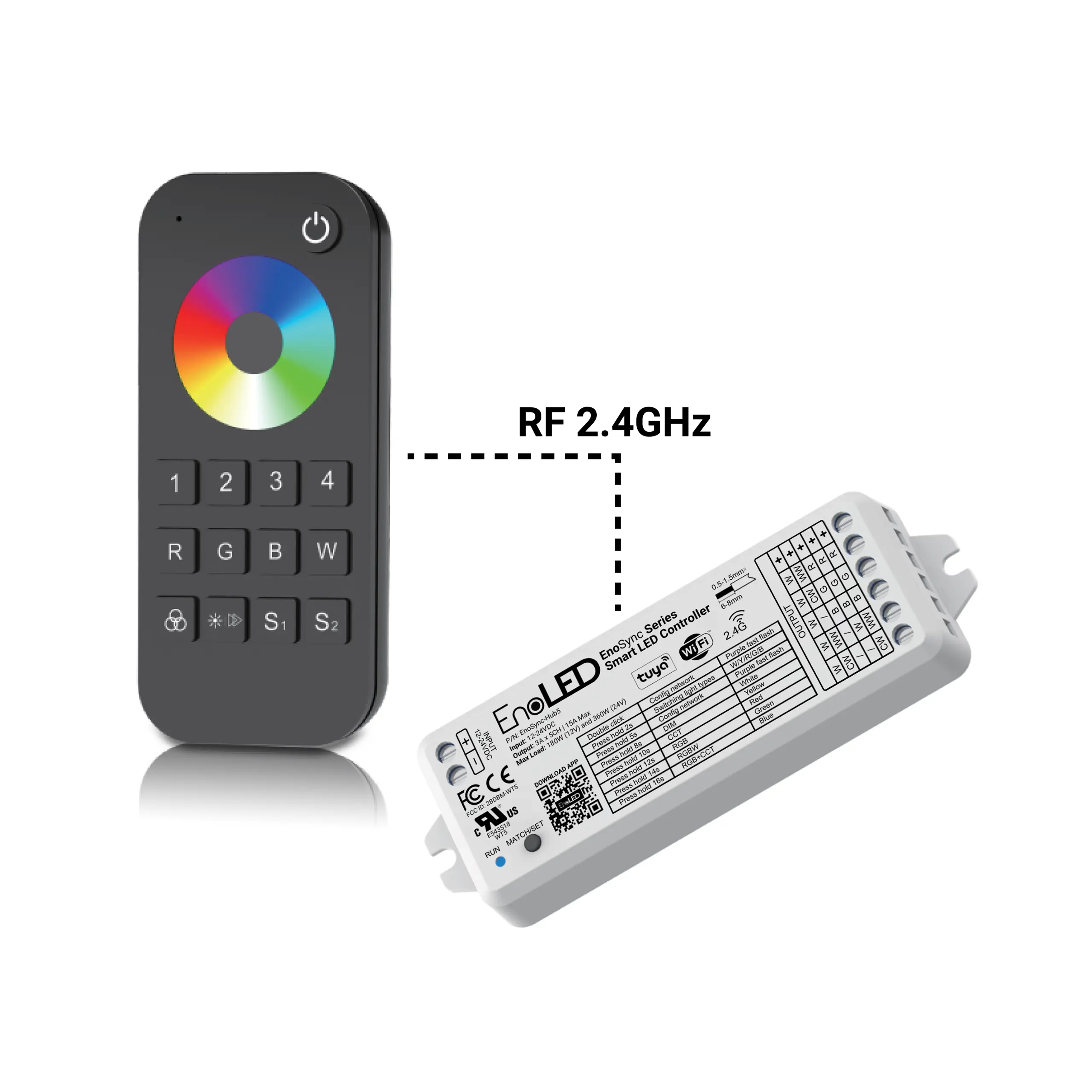

The ES-RT-Z4-RGBW is a 4-zone remote for RGB and RGBW LED strips, offering full color selection through a touch wheel and precise dimming control for each R/G/B/W channel. One remote can manage multiple EnoSync RGB or RGBW controllers, with scene memory and dynamic mode options for professional accent and entertainment lighting.
FEATURES
- 4 independent zones
- Controls multiple EnoSync RGB/RGBW controllers
- Touch wheel for instant color selection
- Independent R/G/B/W channel dimming
- Dynamic mode control with adjustable speed
- Scene recall and save (S1–S4)
- AAAx2 battery powered
- 30m RF range
- LED indicator feedback
| Control type | RGB/RGBW |
| Output Signal | RF (2.4GHz) |
| Working Voltage | 3VDC (AAAX2) |
| Remote Distance | 30m (Barrier-free space) |
| Dimensions (W x H x L) | 2.08″ x 0.68″ x 4.8″ |
Ordering Information
| Ordering Code | Control Type | Output Signal | Working Voltage | Remote Distance | Dimensions (W xH x L) |
|---|---|---|---|---|---|
ES-RT-Z4-Dim |
Dim |
RF (2.4GHz) |
3VDC (AAAX2) |
30m (Barrier-free space) |
2.08″ x 0.68″ x 4.8″ |
ES-RT-Z4-CCT |
CCT |
RF (2.4GHz) |
3VDC (AAAX2) |
30m (Barrier-free space) |
2.08″ x 0.68″ x 4.8″ |
ES-RT-Z4-RGBW |
RGB/RGBW |
RF (2.4GHz) |
3VDC (AAAX2) |
30m (Barrier-free space) |
2.08″ x 0.68″ x 4.8″ |
ES-RT-Z4-RGBCCT |
RGB+CCT |
RF (2.4GHz) |
3VDC (AAAX2) |
30m (Barrier-free space) |
2.08″ x 0.68″ x 4.8″ |
