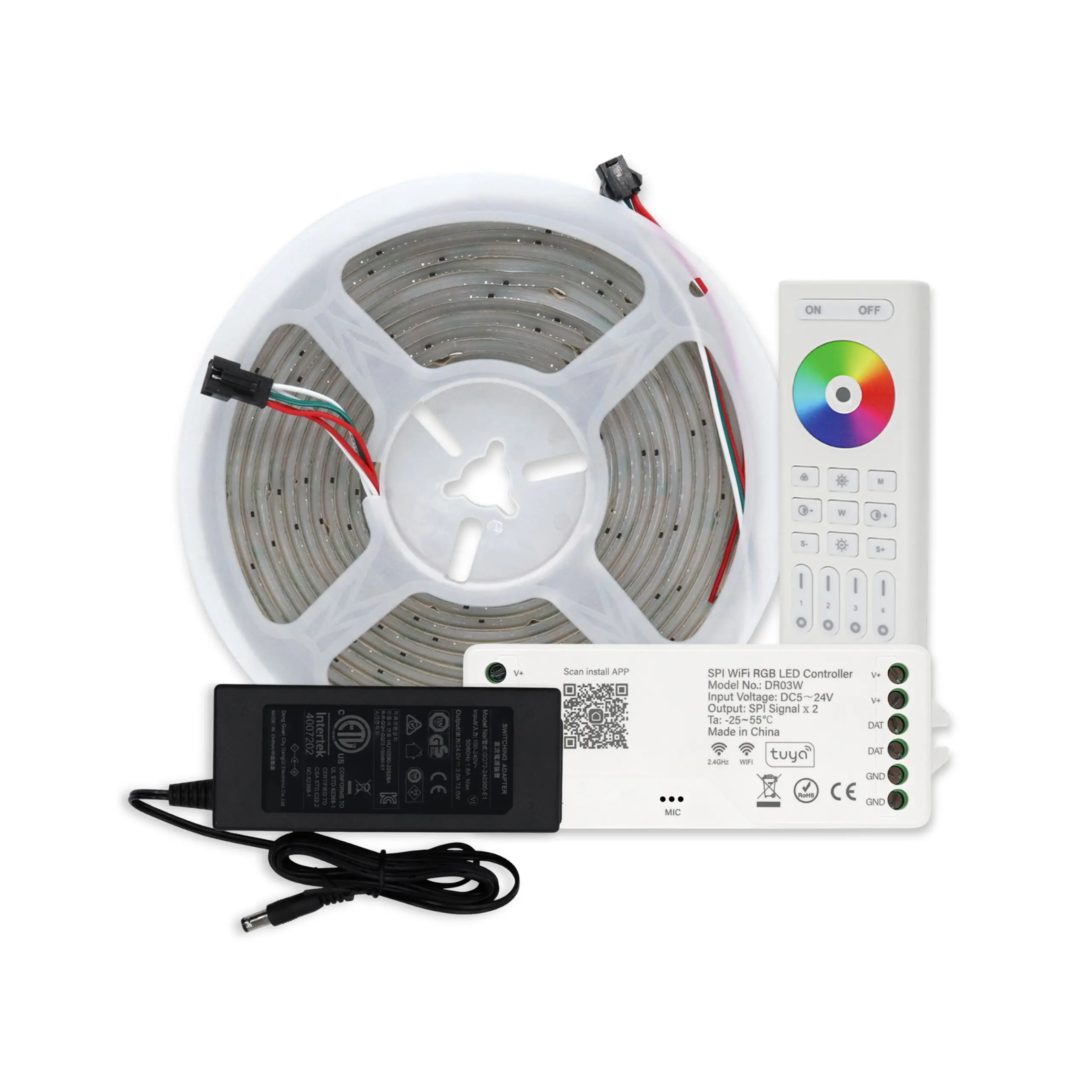

What's Included_03

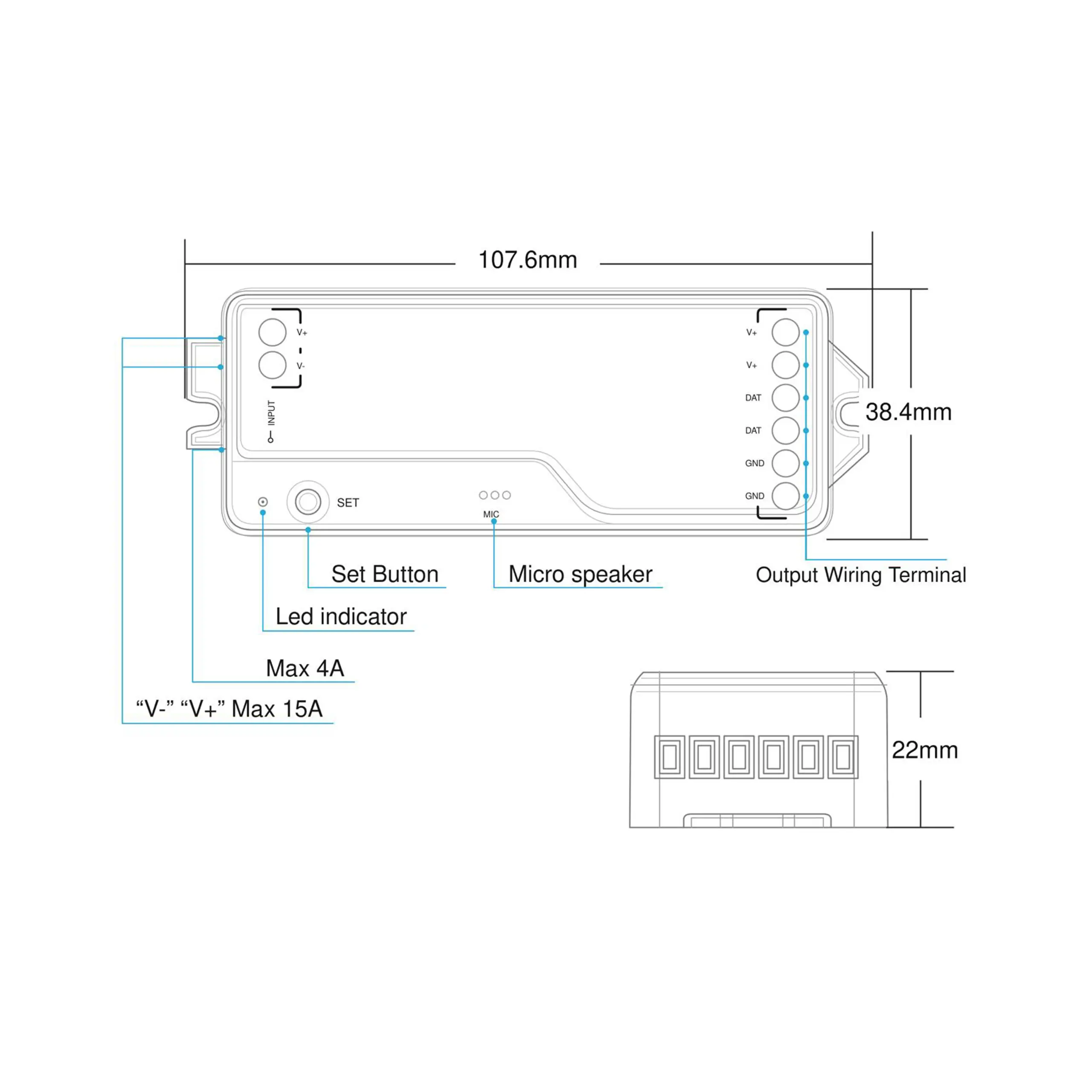

User Interface_05_

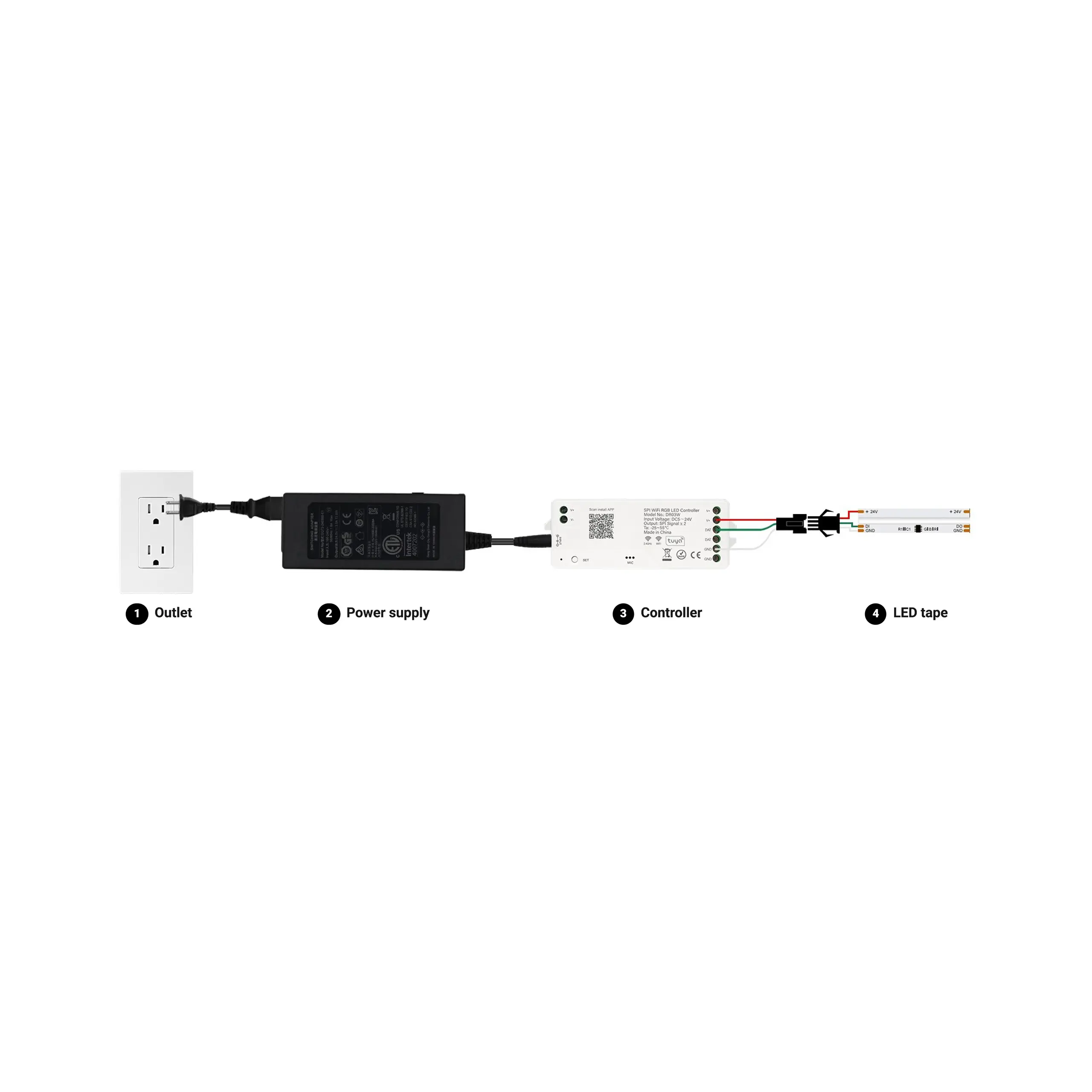

Wiring Diagram_04

UniPixel-RGB-Kit

24VDC IP20 RGBIC COB LED Tape Light Kit

DESCRIPTION

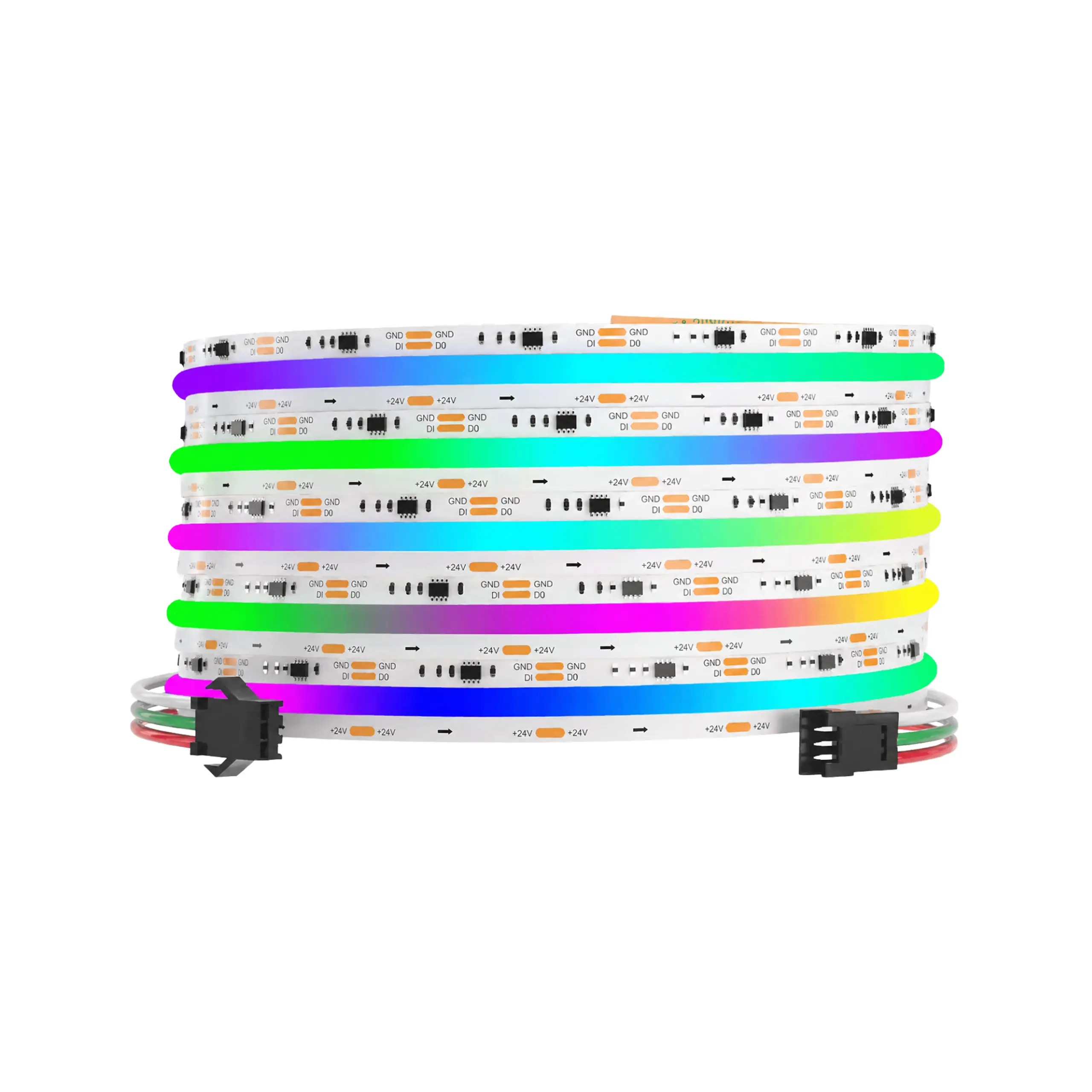

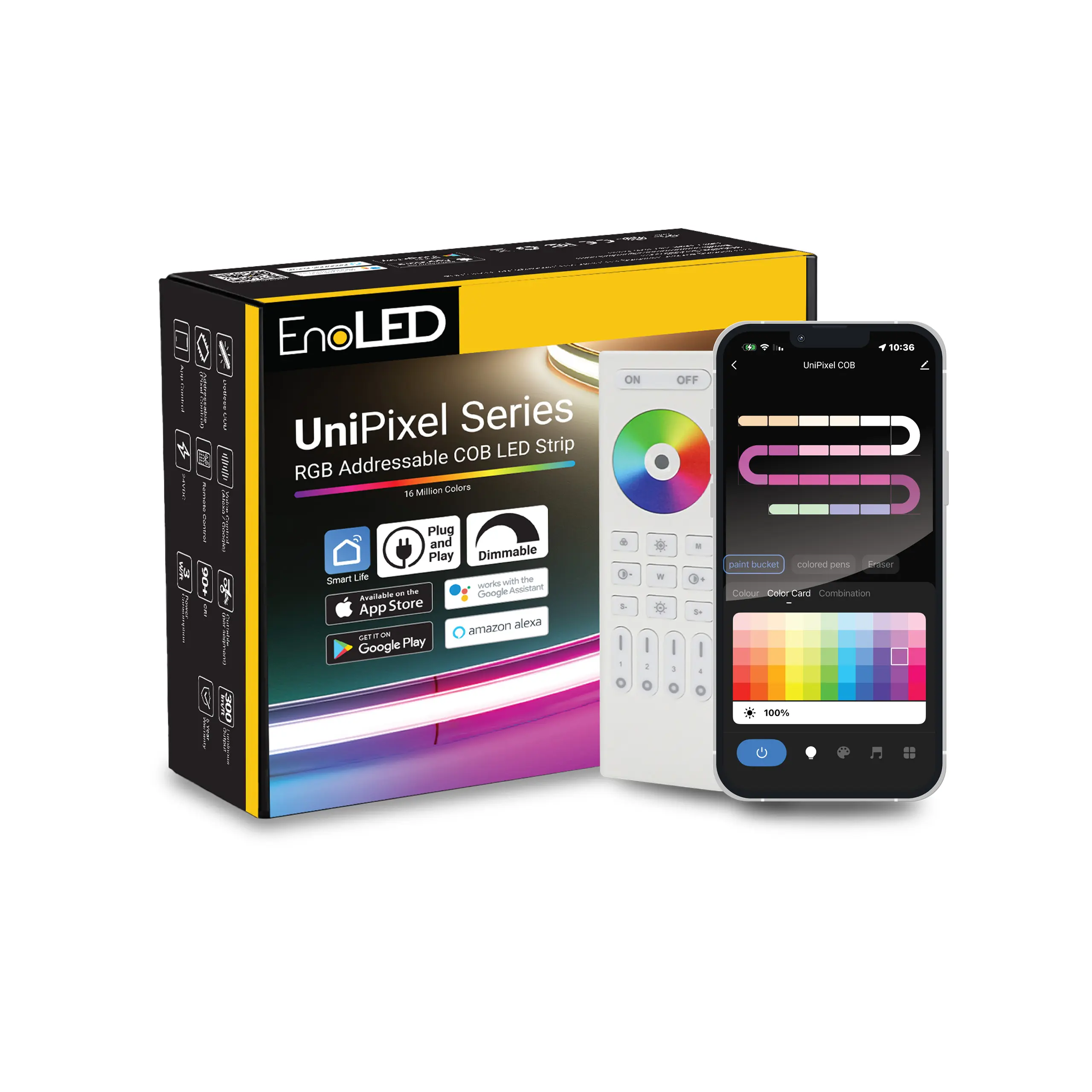

UniPixel is more than standard RGB tape. Each 1.97-inch segment is individually addressable, allowing multiple colors, gradients, chases and moving effects to appear simultaneously along one seamless COB line. The complete retail-ready kit includes the tape, SPI controller, 24VDC power supply, 4-zone remote and 3-pin connector, with app and voice-control compatibility.

FEATURES

  • All-in-One Kit
  • Plug-and-Play Installation
  • Addressable RGBIC
  • Dotless COB
  • App, Voice & RF Remote Control
  • Retail-Ready Packaging
  • 6-Year Warranty
Input Voltage:24VDC
Color Temperature:RGBIC – 16.7 million colors
CRI90+
Power3W/ft
Lumens300 lm/ft
Cut Length1.97″
EnvironmentIP20
Dimensions0.47″ (12mm)
Maximum Run32.8ft
Request a sample
Project support

Ordering Information​

Ordering Code Length Voltage CCT CRI Wattage Lumens Cuttable IP Rating
UniPixel-RGB-Kit-16
16ft
24VDC
RGBIC
90+
3W/ft
300 lm/ft
1.97″
IP20
UniPixel-RGB-Kit-32
32ft
24VDC
RGBIC
90+
3W/ft
300 lm/ft
1.97″
IP20
