XRD-40W-12VDC

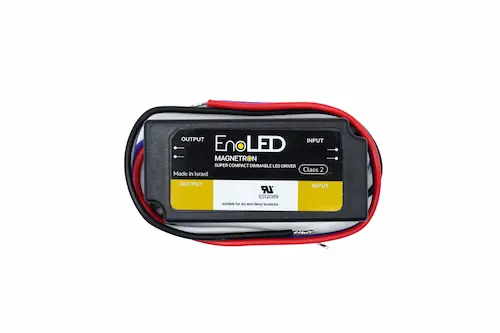

Magnetron XRD 40W, 12VDC Phase Cut Dimmable LED Driver
DESCRIPTION
The MAGNETRON XRD UL Listed Class 2 phase-dimmable LED drivers offer a super compact metal case with a built-in junction box. Dimming is smooth down to 1% with any standard Incandescent / CLF / LED / MLV / ELV (leading or trailing edge) dimmer switch. With high efficiency performance, those drivers are designed to power any 24VDC LED Tape.
FEATURES
- The smallest Dimmable LED driver in the market - 6.20×1.85×1.35 inch (L*W*H)
- Built-in junction box
- UL Listed - Class 2
- Dimmable with any Incandescent/CLF/LED/MLV/ELV (leading or trailing edge) dimmer switch.
- Dim down to 1%
- Overload and short circuits auto-reset protection
- 88% Efficiency @ Full Load
- Damp and dry location
| Product line | Magnetron XRD |
| Input Voltage | 120VAC |
| Output Voltage | 12VDC |
| Max load | 40W |
| Dimmable | Incandescent / CLF / LED / MLV / ELV |
| Operating Temp | -40°F -104°F (-40°C- 40°C) |
| Dimensions | 6.20×1.85×1.35 inch (L*W*H) |
| Environmental | Dry & Damp Location |
| Certification | UL , Class 2 |
Ordering Information
| Ordering Code | Input Voltage | Output Voltage | Max Load | Class 2 | Dimmable | Environment | Dimensions |
|---|---|---|---|---|---|---|---|
XRD-40W-24VDC | 120VAC | 24VDC | 40W | Yes | Incandescent, CFL / LED, MLV, ELV | IP21 | 6.20" x 1.85" x 1.35" |
XRD-60W-24VDC | 120VAC | 24VDC | 60W | Yes | Incandescent, CFL / LED, MLV, ELV | IP21 | 6.20" x 1.85" x 1.35" |
XRD-75W-24VDC | 120VAC | 24VDC | 75W | Yes | Incandescent, CFL / LED, MLV, ELV | IP21 | 6.20" x 1.85" x 1.35" |
XRD-96W-24VDC | 120VAC | 24VDC | 96W | Yes | Incandescent, CFL / LED, MLV, ELV | IP21 | 6.20" x 1.85" x 1.35" |
XRD-40W-12VDC | 120VAC | 12VDC | 40W | Yes | Incandescent, CFL / LED, MLV, ELV | IP21 | 6.20" x 1.85" x 1.35" |
XRD-60W-12VDC | 120VAC | 12VDC | 60W | Yes | Incandescent, CFL / LED, MLV, ELV | IP21 | 6.20" x 1.85" x 1.35" |
