ES-RT-Z4-DIM

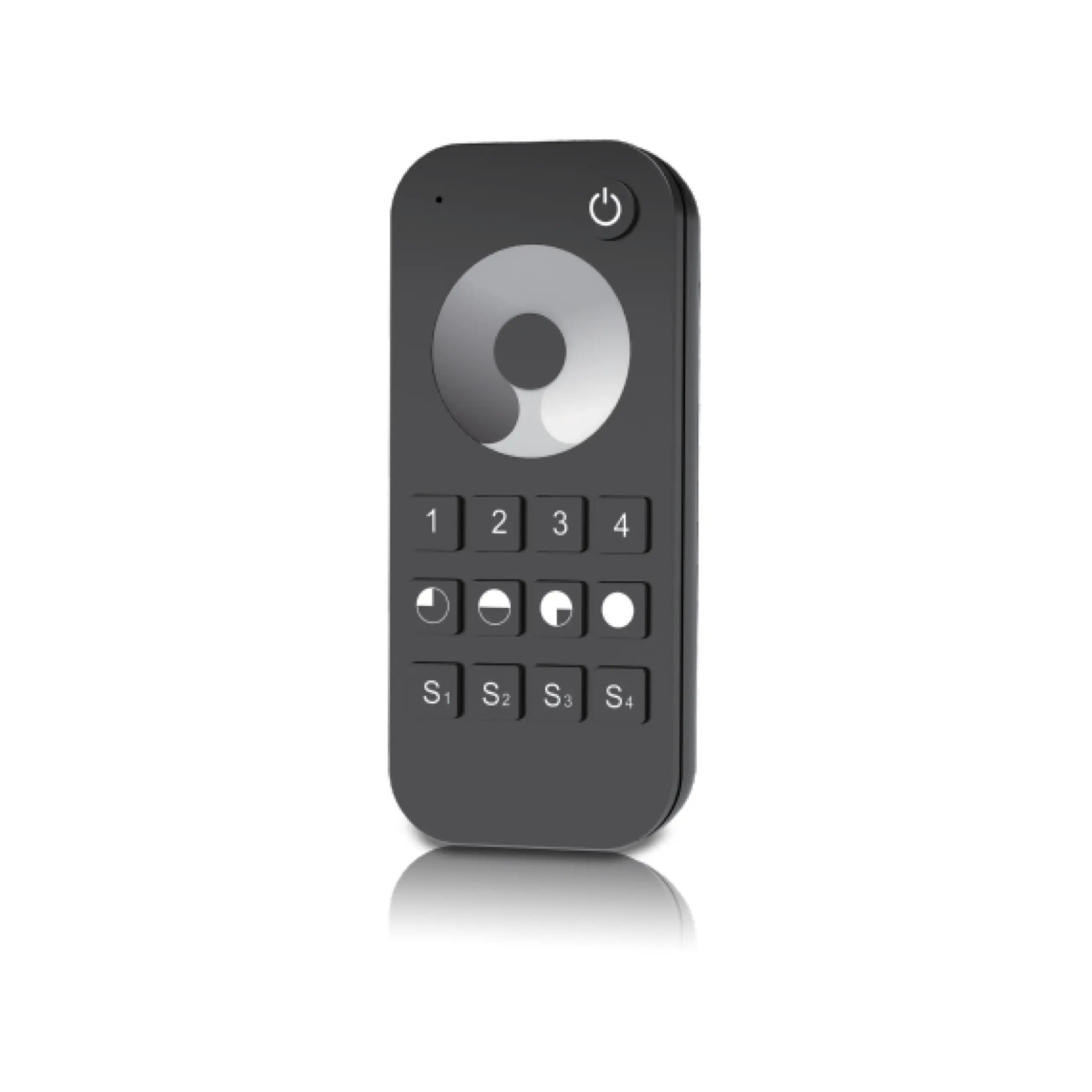

Dimming Touch Wheel RF Remote Controller
DESCRIPTION

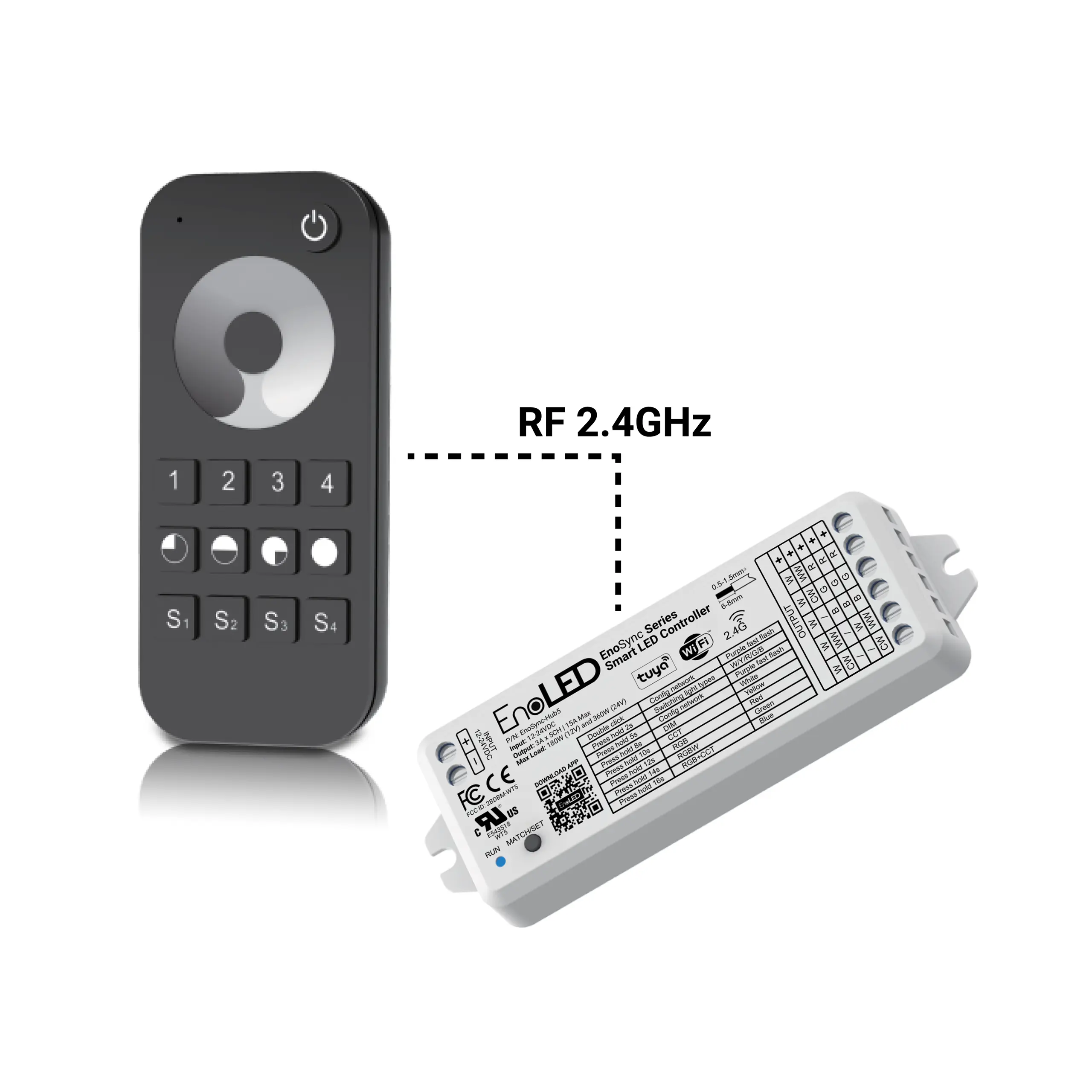

The ES-RT-Z4-Dim is a 4-zone dimming remote designed for single-color LED installations. It provides smooth brightness control using an ultra-responsive touch wheel and allows one remote to operate multiple EnoSync LED controllers. Ideal for residential and commercial dimming applications with quick scene recall.
FEATURES
- 4 independent zones
- 4 independent zones

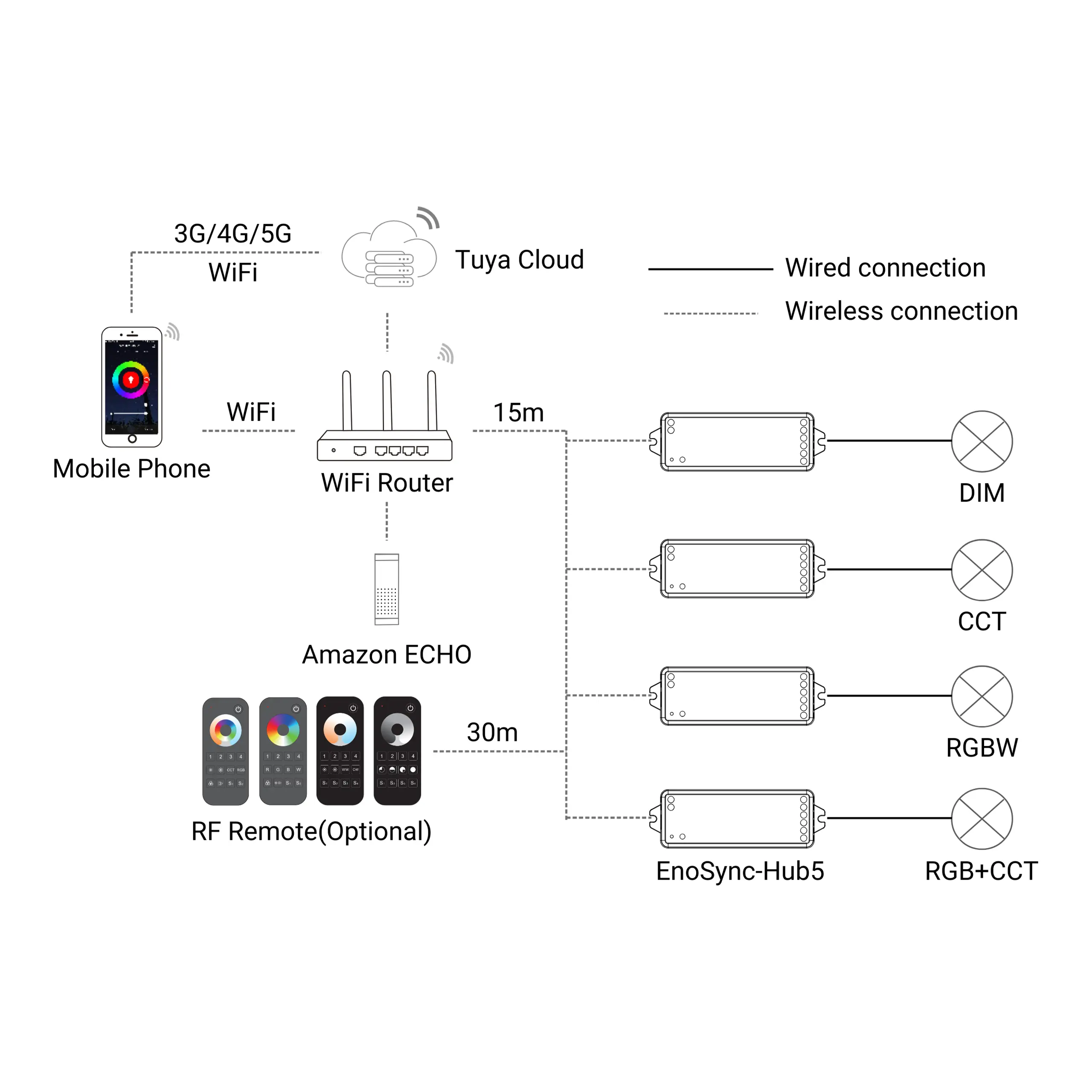

- Controls multiple EnoSync dimming controllers
- Touch wheel for smooth brightness adjustment
- Scene recall and save (S1–S4)
- Single-zone or 4-channel dimming mode
- AAAx2 battery powered
- 30m RF range
- LED indicator feedback
| Control type | Dim |
| Output Signal | RF (2.4GHz) |
| Working Voltage | 3VDC (AAAX2) |
| Remote Distance | 30m (Barrier-free space) |
| Dimensions (W x H x L) | 2.08″ x 0.68″ x 4.8″ |
Ordering Information
| Ordering Code | Control Type | Output Signal | Working Voltage | Remote Distance | Dimensions (W xH x L) |
|---|---|---|---|---|---|
ES-RT-Z4-Dim |
Dim |
RF (2.4GHz) |
3VDC (AAAX2) |
30m (Barrier-free space) |
2.08″ x 0.68″ x 4.8″ |
ES-RT-Z4-CCT |
CCT |
RF (2.4GHz) |
3VDC (AAAX2) |
30m (Barrier-free space) |
2.08″ x 0.68″ x 4.8″ |
ES-RT-Z4-RGBW |
RGB/RGBW |
RF (2.4GHz) |
3VDC (AAAX2) |
30m (Barrier-free space) |
2.08″ x 0.68″ x 4.8″ |
ES-RT-Z4-RGBCCT |
RGB+CCT |
RF (2.4GHz) |
3VDC (AAAX2) |
30m (Barrier-free space) |
2.08″ x 0.68″ x 4.8″ |
