JPro-96W-24DC

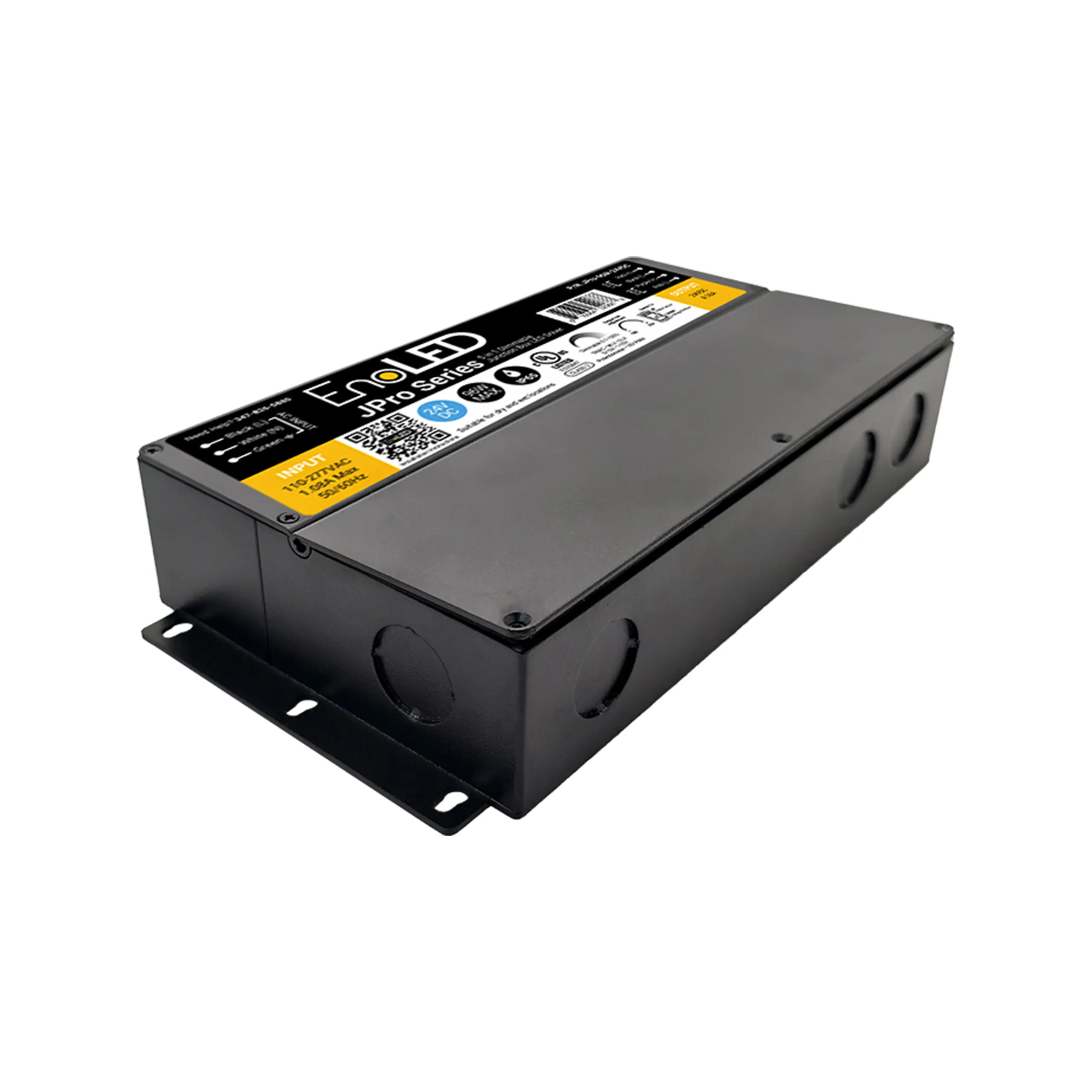

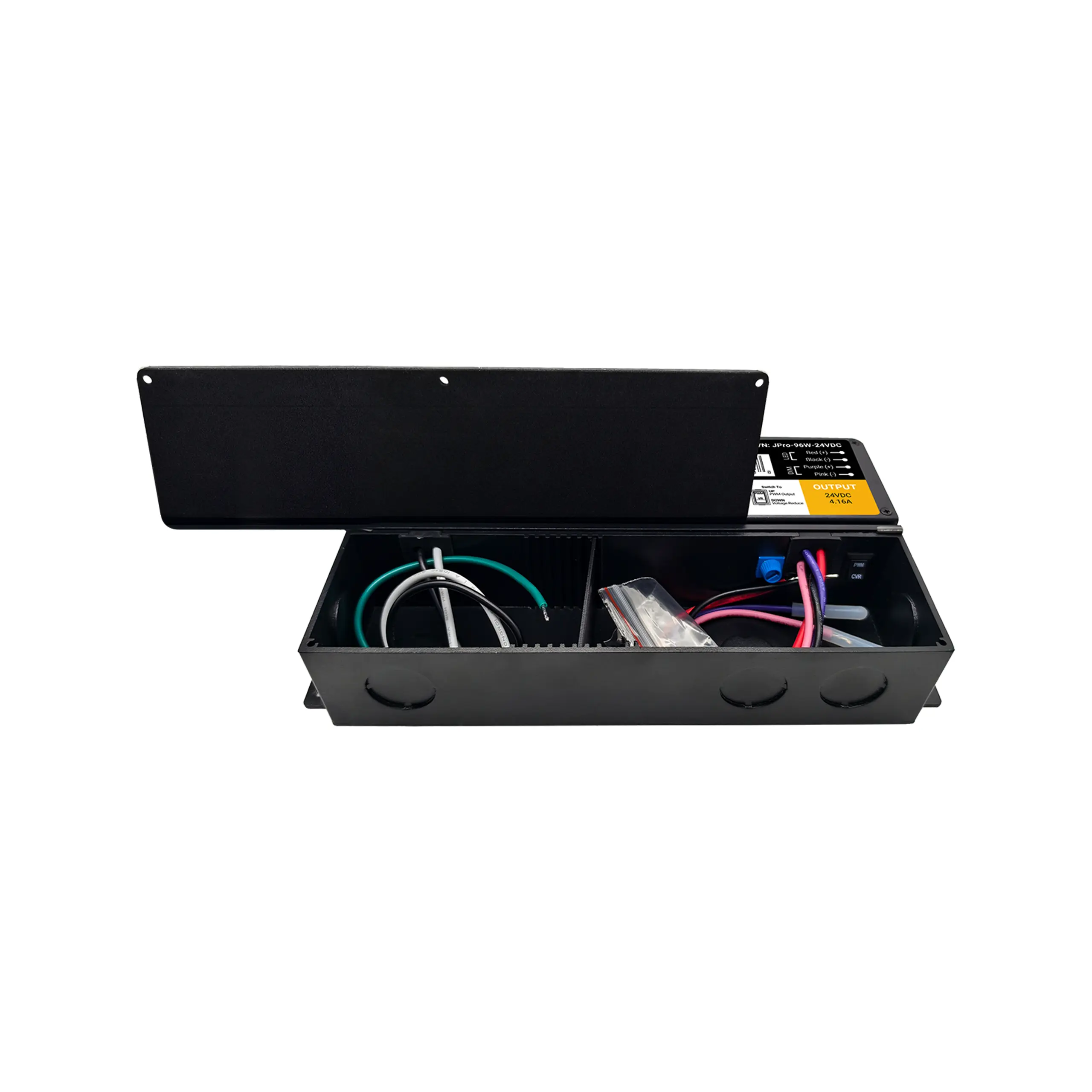

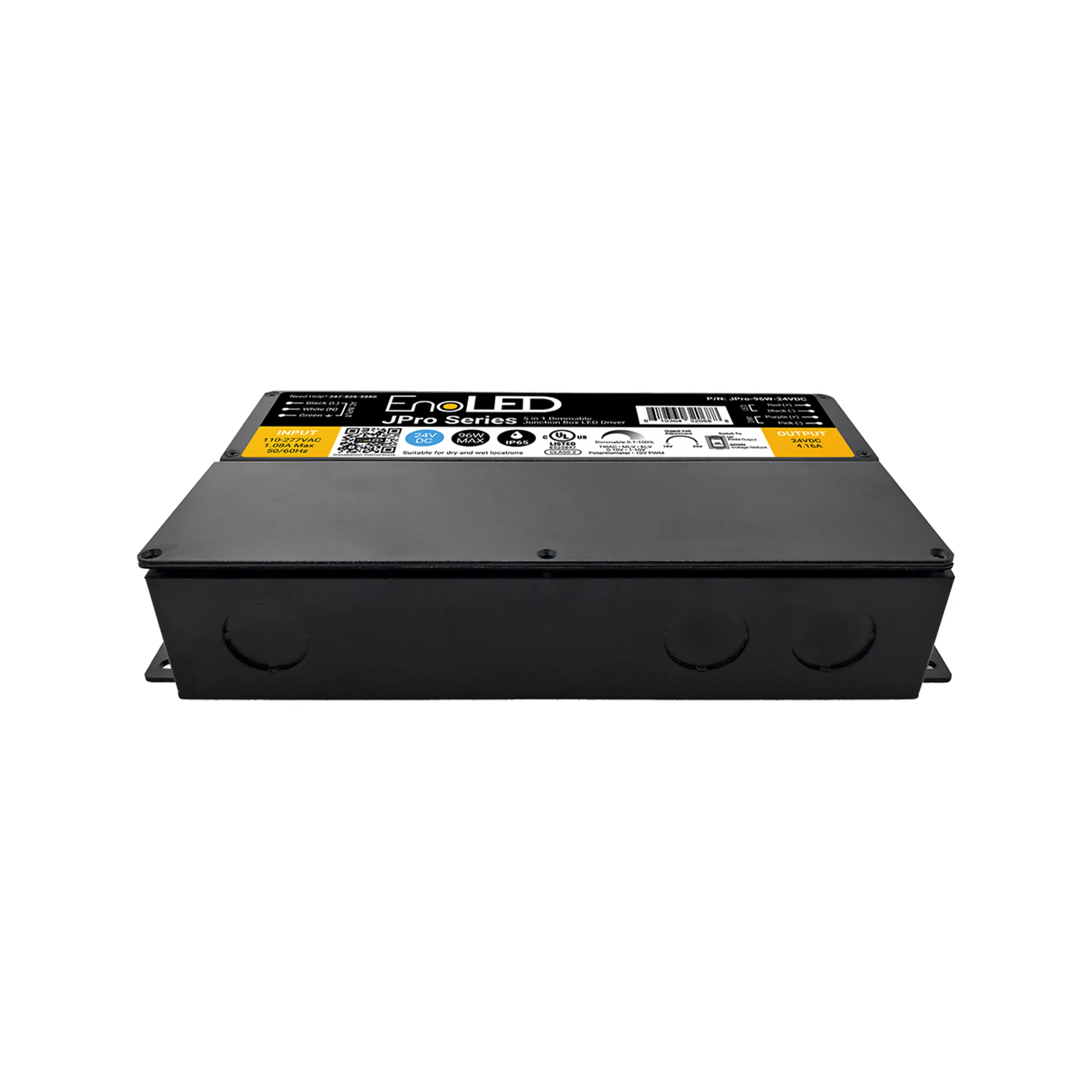

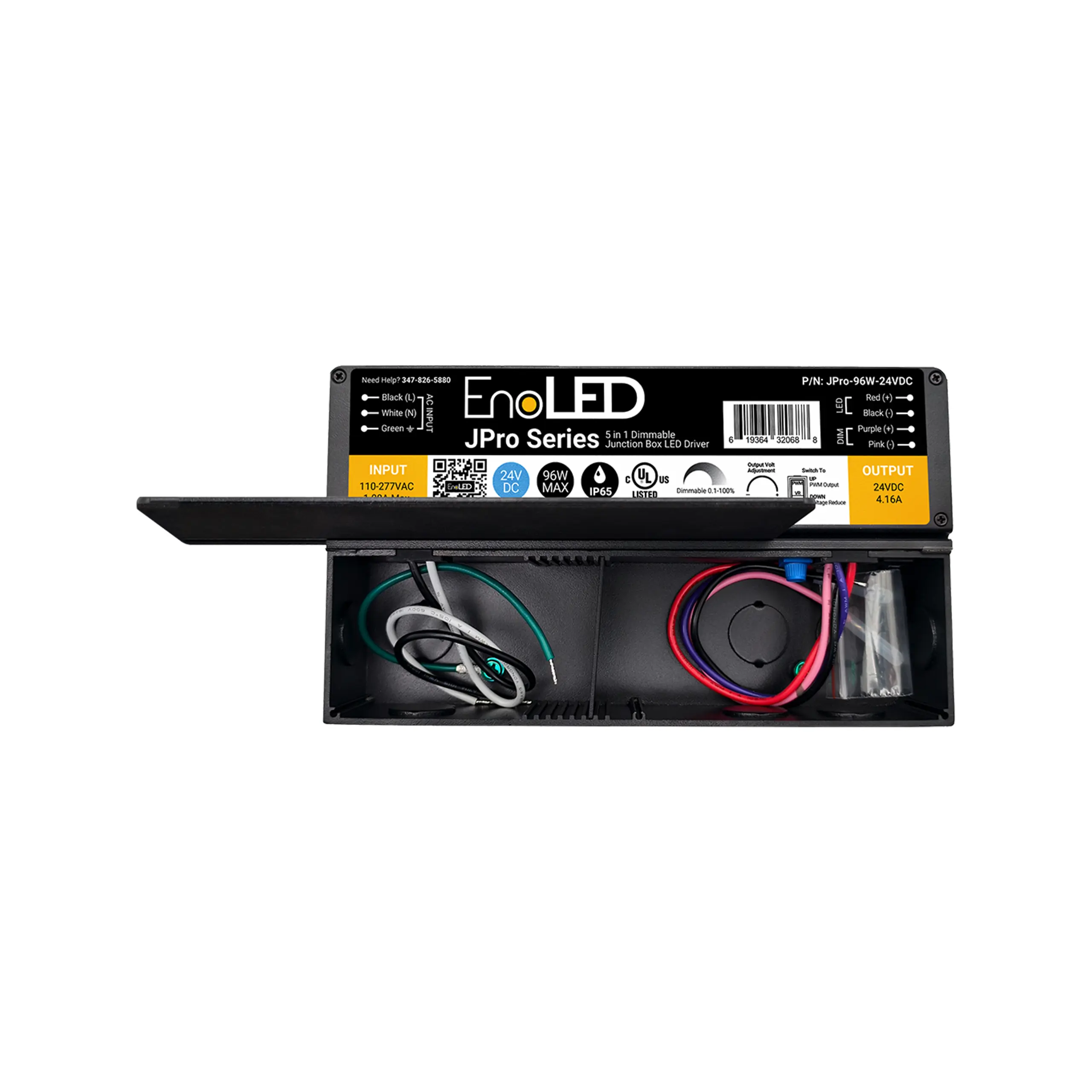

JPro Series, 96W, 24VDC 5-in-1 Dimmable JBox LED Driver
DESCRIPTION
JProDrive is a professional-grade universal dimmable LED driver designed for high-performance LED tape and architectural lighting applications. Supporting 5-in-1 dimming with PWM and voltage reduction dimming technology, it delivers smooth flicker-free dimming down to 0.1% with maximum compatibility across modern control systems. Featuring universal 120–277VAC input, IP67 protection, and long run voltage compensation, JProDrive is built for reliable indoor and outdoor installations where consistent performance matters.
FEATURES
- 5-in-1 Universal Dimming Compatibility
- PWM & Voltage Reduction Dimming Modes
- Ultra-Smooth 0.1% Flicker-Free Dimming
- Universal 120–277VAC Input
- Long Run Voltage Drop Compensation
- IP67 Rated for Indoor & Outdoor Use
- Backed by a 6-Year Limited Warranty
| Max Power | 96W |
| Input Voltage | 120-277VAC |
| Output Voltage | 24VDC |
| Dimmable | TRIAC / MLV / ELV / 0-10V 1-10V / Potentiometer 10V PWM |
| IP Rating | IP65 |
| Efficiency @ Full Load | 90% |
| Warranty | 6 Year |
| Dimensions (W x H x L) | 8.91″ x 4.62″ x 1.67″ |
Ordering Information
| Ordering Code | Input Voltage | Output Voltage | Max Load | Class 2 | Dimmable | Environment | Dimensions |
|---|---|---|---|---|---|---|---|
JPro-96W-24VDC |
120-277VAC |
24VDC |
96W |
Yes | TRIAC / MLV / ELV / 0-10V |
IP65 |
8.91″ x 4.62″ x 1.67″ |
JPro-200W-24VDC |
120-277VAC |
24VDC |
200W |
Yes | TRIAC / MLV / ELV / 0-10V |
IP65 |
10″ x 5.19″ x 1.67″ |
JPro-300W-24VDC |
120-277VAC |
24VDC |
300W |
Yes | TRIAC / MLV / ELV / 0-10V |
IP65 |
11.37″ x 5.19″ x 1.92″ |
